  • asus MAXIMUS formula G.skill

    Having an issue!!!! system is asus maximus formula v I73770k, HISHD6870, and 32gb G.Skill F3-12800CL10Q-32GBXL I can only run 16 gigs in banks B1-B2 if i put it in A2-B2 for duel channel machine wont even post. if i use anything other then B1-B2 it will not post. The dimm light on the board stays on and the debug led stops @ error 55... Please help really want my 32gigs so I can make a ram disk....


    THANK YOU

  • #2
    Try a single DIMM in A_2 and then in B_2. Have you set your BIOS for XMP? You may have to manually set your RAM volts and timings.
    I'm sorry Dave, I can't do that.

    Comment


    • #3
      been there done that Yes XMP is on and timings are set cant get to bios or even post with a single stick in A-2

      Thanks

      Comment


      • #4
        Check and see that you have the latest BIOS, many are still (even today) behind on getting their BIOSs up to snuff for 32GB and larger sets (some even on 16). If you have the latest BIOS post your system voltages and DRAM settings, particularly the advanced/secondary timings


        Pls offer comments on support I provide, HERE, in order to help me do a better job here:

        Tman

        Comment


        • #5

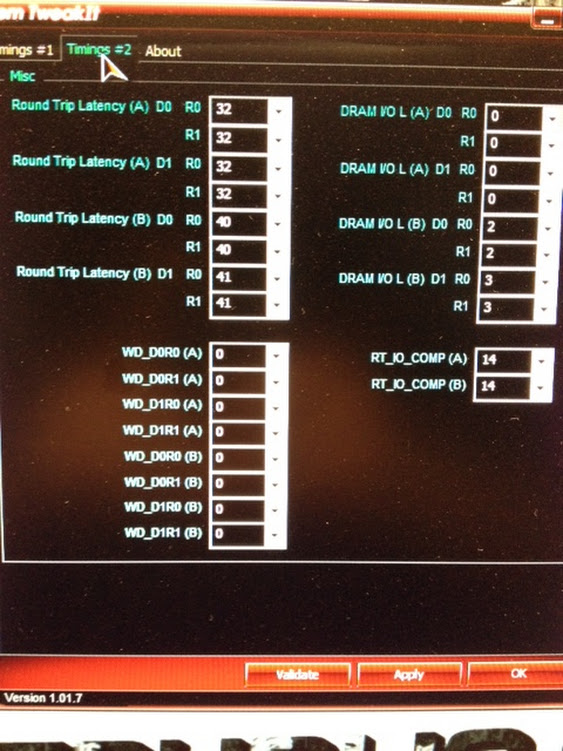

          Here is a few links to photos for detailed timings on both slots

          Thanks again

          https://lh6.googleusercontent.com/-4...p-k/2012-09-07

          https://lh5.googleusercontent.com/-2...n-k/2012-09-07

          https://lh3.googleusercontent.com/-K...n-k/2012-09-07

          https://lh3.googleusercontent.com/-c...n-k/2012-09-07

          Comment


          • #6
            If possible the settings as in the BIOS, with system voltages i.e. vCore, PLL, DRAM, VTT voltages, and then both the base timings and advanced/secondary timings, sorry but screen shots of CPU=z and AI tuner don't show much....if you have a flash drive, insert it and boot into BIOS, then for each screen you want a screenshot of hit the F12 key and it should save the image to the flash drive.


            Pls offer comments on support I provide, HERE, in order to help me do a better job here:

            Tman

            Comment


            • #8
              Try with all sticks and vccio at 1.2 and VCCSA at 1.2, just to see what happens and let me know


              Pls offer comments on support I provide, HERE, in order to help me do a better job here:

              Tman

              Comment


              • #9
                Well gave it a shot system runs smoother but still no luck with the ram it still stops at error 55 and the DIMM led stays lit. everything works great using the B-1/B-2 slots only. So after 6 careful hours of installation running cables in getting everything just the way I like it looks like I will be sending it RMA back to newegg want the same board but really worried ill have the same prob. Any recommendation on 32gb ram setup in this board???? or should this ram work ? all 4 stick work fine in the B-slots...\

                Thanks ALOT
                Jim

                Comment


                • #10
                  Agree, think you may have bad slots, the DRAM should be fine and the CPU can definately carry that set and on up with no problem....let us know when you get your new mobo


                  Pls offer comments on support I provide, HERE, in order to help me do a better job here:

                  Tman

                  Comment


                  • #11
                    OMG pulled the board to get ready for shipping back decided to bench test BAM! now reading all memory...!?!?!?!? any idea or tips before i put it back in???

                    Comment


                    • #12
                      Put together carefully and watch for items that may have caused a short or other problem, if you haven't already might look to my info thread here for help:

                      http://www.gskill.us/forum/showthread.php?t=11279


                      Pls offer comments on support I provide, HERE, in order to help me do a better job here:

                      Tman
