Help to config G.Skill. PI series 8GB (F2-8800CL5-2GBPI) with ASUS P5Q-E

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

  • Help to config G.Skill. PI series 8GB (F2-8800CL5-2GBPI) with ASUS P5Q-E

    Hello
    I have 8gb G.Skill. PI series (F2-8800CL5-2GBPI) and I need help to config with ASUS P5Q-E.
    I tried with 1100 and 1066 and i have randoms blue windows errors.
    If is possible I'm looking stability at 1100.
    Thank You.
    Last edited by Mojuku; 01-05-2020, 02:31 AM.

  • #2
    What settings are you using? Can you post pictures of BIOS, mainly CPU and memory settings?

    What CPU do you have? Does each kit run fine at DDR2-1066?

    Comment


    • #3
      Originally posted by GSKILL TECH View Post
      What settings are you using? Can you post pictures of BIOS, mainly CPU and memory settings?

      What CPU do you have? Does each kit run fine at DDR2-1066?
      Thanks for help me.
      My CPU is an Intel Core 2 Quad Q9650.

      I had no problems if I leave it by default at 800 (which is what the bios detects).

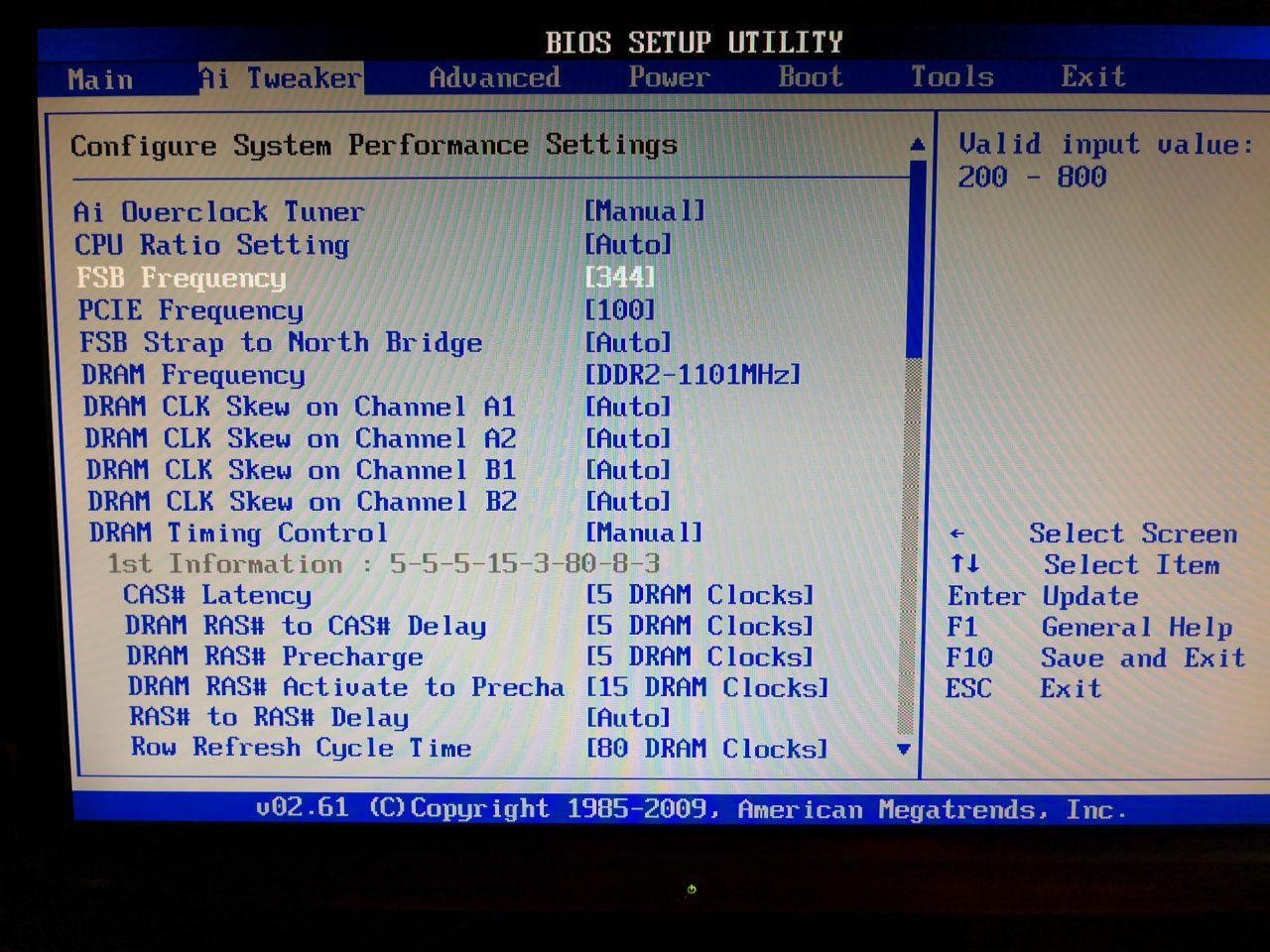

      I'm currently using the settings below 1066 (It seems that for now it is stable) but I don't know if it's the right one. I would like to put it at 1100 if possible.

      Thx.
      Last edited by Mojuku; 01-07-2020, 11:31 AM.

      Comment


      • #4
        Originally posted by Mojuku View Post

        Thanks for help me.
        My CPU is an Intel Core 2 Quad Q9650.

        I had no problems if I leave it by default at 800 (which is what the bios detects).
        I'm currently using the settings below 1066, but I don't know if it's the right one. I would like to put it at 1100 if possible.

        Comment


        • #5
          Looks good, have you tried increasing FSB Frequency to see if it can reach 1100?

          Comment


          • #6
            Originally posted by GSKILL TECH View Post
            Looks good, have you tried increasing FSB Frequency to see if it can reach 1100?
            Yes, you can see it, but i need to know a stable config for this.
            Thx.
            Attached Files

            Comment


            • #7
              Then test it. How do those settings work? Did you run a benchmark test?

              Comment


              • #8
                Originally posted by GSKILL TECH View Post
                Then test it. How do those settings work? Did you run a benchmark test?
                Should I just change the FSB? Don't I have to configure anything else to make it stable at 1100? (In the previous photo i only show that is possible reach 1100).

                Comment


                • #9
                  Yes, and may need to adjust Voltages based on results, so testing is necessary.

                  Comment


                  • #10
                    Originally posted by GSKILL TECH View Post
                    Yes, and may need to adjust Voltages based on results, so testing is necessary.
                    żAida64 is a good reference of benchmark test?

                    Comment


                    • #11
                      Yes indeed

                      Comment


                      • #12
                        Originally posted by GSKILL TECH View Post
                        Yes indeed
                        Hi.

                        I've been testing the same voltage values ​​I had in 1066 and playing Guild Wars 2 I had a blue screen "MEMORY_MANAGEMENT"

                        I'm tested memory with Aida 64 and these are the results.

                        Comment


                        • #13
                          Increase DRAM Voltage to see if that can improve stability. What is your NB Voltage?

                          Comment


                          • #14
                            Originally posted by gskill tech View Post
                            increase dram voltage to see if that can improve stability. What is your nb voltage?
                            DRAM voltage: 2.10
                            NB voltage: 1.40

                            Comment


                            • #15
                              Try adjusting both values to see if stability can be improved.

                              Comment
