Exclamation Asus P5Q-WS and F2-6400CL5Q -16GBPQ

I am hoping you can help me with a memory upgrade challenge I am facing.

I have an Asus P5Q-WS and an X9650 CPU.

Until last week I had 8 GB of RAM working fine (Patriot brand) 4*2 GB.

As I use quite a lot of virtual machines I decided to upgrade the RAM for this machine and the best available RAM I could find was the F2-6400CL5Q -16GBPQ.

sadly enough, it does not seem to work with my board.
When I put in all 4 slots, the computer starts, all the fans spin, harddisks start to spin, but I don't get to post.

When I put in 2*4 the system boots and recognises 8GB of RAM.
these works in all possible combinations (different ram in different dual slots).

I have tried boosting RAM voltage to 1.92, NB voltage to 1.44, specified the RAM specifications, ... but so far unsuccessful.

Does anyone have an idea what the best settings would be for this RAM-MB combination?

Thanks in advance for any assistance!
Reply With Quote
  #2
Old 10-01-2014, 02:32 AM
Khylrion Khylrion is offline
Junior Member

Join Date: Sep 2014
Posts: 15
Khylrion is reading into overclocking
Default

I should add that the Asus P5Q-WS uses the latest BIOS 1703
Reply With Quote
  #3
Old 10-01-2014, 05:16 AM
Khylrion Khylrion is offline
Junior Member

Join Date: Sep 2014
Posts: 15
Khylrion is reading into overclocking
Default

I I have also tried to lower the DRAM frequency to 791, the CL to 6.
Increased the NB to 1.54 in small steps.

Have also tried to add two of my old ram chips in the other dual slot but same result.

I have also made sure that I tried with my CPU set to auto overclocked and manual.
Atm I am running it at at 380 FSB. (3.8 GHZ with 10 multiplier)

I have now set

DRAM static read control: disabled
DRAM read training: Disabled
MEM OC Charger: Light

have now also set my vcore to 1.2875.

So far no luck.

Would appreciate any pointers in the right direction.

the next thing I will try is to set the FSB strap to a different value.
Reply With Quote
  #4
Old 10-01-2014, 08:56 AM
GSKILL TECH's Avatar
GSKILL TECH GSKILL TECH is offline
Administrator

Join Date: Jul 2008
Location: Los Angeles, California
Posts: 11,604
GSKILL TECH has disabled reputation
Default

So any 2 G.Skill modules work, just not 3 or 4?

Can you send some pictures of BIOS with 2 installed?
__________________
Are you an overclocker? Have screen shots of your OC results? Please post and share your OC experience!

The new G.Skill Overclocking Section!

http://www.gskill.us/forum/forumdisplay.php?f=43
Reply With Quote
  #5
Old 10-01-2014, 10:14 AM
Khylrion Khylrion is offline
Junior Member

Join Date: Sep 2014
Posts: 15
Khylrion is reading into overclocking
Default

correct, and I have tested all possible combinations.

Anything particular you want to see from my BIOS?

Will take some pictures of what I assume is relevant for you.
Reply With Quote
  #6
Old 10-01-2014, 10:41 AM
Khylrion Khylrion is offline
Junior Member

Join Date: Sep 2014
Posts: 15
Khylrion is reading into overclocking
Default

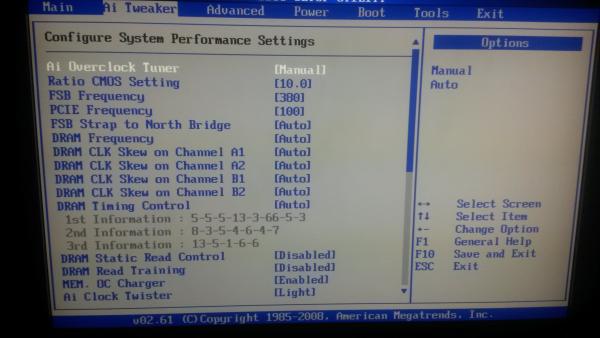

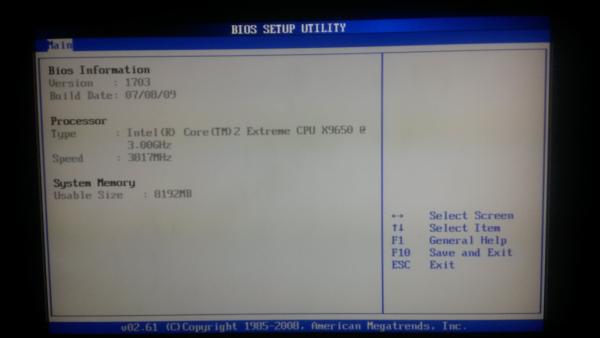

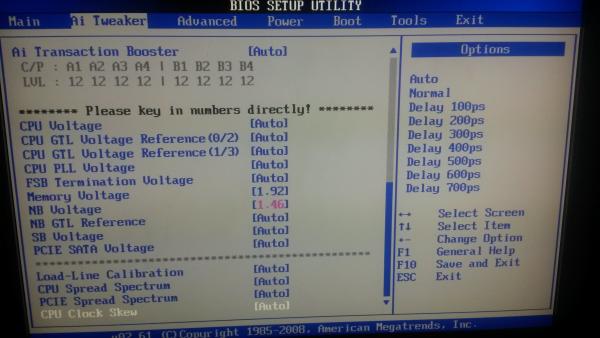

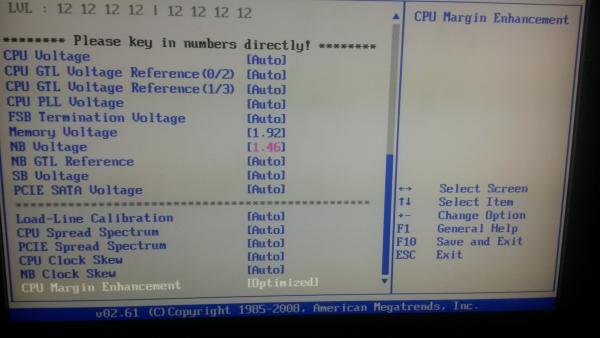

first batch of pictures. Hope they are readable.
Attached Thumbnails
Click image for larger version

Name:	20141001_201938.jpg
Views:	8
Size:	15.4 KB
ID:	469   Click image for larger version

Name:	20141001_201955.jpg
Views:	12
Size:	29.3 KB
ID:	470   Click image for larger version

Name:	20141001_202043.jpg
Views:	21
Size:	31.6 KB
ID:	471   Click image for larger version

Name:	20141001_202056.jpg
Views:	9
Size:	26.2 KB
ID:	472   Click image for larger version

Name:	20141001_202106.jpg
Views:	9
Size:	25.5 KB
ID:	473

Reply With Quote
  #7
Old 10-01-2014, 08:31 PM
Khylrion Khylrion is offline
Junior Member

Join Date: Sep 2014
Posts: 15
Khylrion is reading into overclocking
Default

anything else you would need apart from the pictures above?
Reply With Quote
  #8
Old 10-02-2014, 09:44 PM
Khylrion Khylrion is offline
Junior Member

Join Date: Sep 2014
Posts: 15
Khylrion is reading into overclocking
Default

Before I continue with any trial, pray and error I would really appreciate any guidance from support.

Thanks in advance.
Reply With Quote
  #9
Old 10-03-2014, 05:05 AM
emissary42's Avatar
emissary42 emissary42 is offline
Senior Member

Join Date: May 2013
Location: Nehr'esham
Posts: 435
emissary42 is a highly advanced overclockeremissary42 is a highly advanced overclocker
Default

Have you tried four modules with BCLK @ default and auto settings as well?

If any two modules of the kit run just fine and its only when all four are installed that the boards fails to POST, then it probably comes down to manually tuning settings. It is probably more a problem on the side of the mainboard, than with the memory itself. Maybe ASUS can help you with that, since they probably did some in-house testing with 4x4GB.
Reply With Quote
  #10
Old 10-03-2014, 10:36 PM
Khylrion Khylrion is offline
Junior Member

Join Date: Sep 2014
Posts: 15
Khylrion is reading into overclocking
Default

Thanks for your reply and suggestion.

I have tried with everything at default, auto settings and 4*4GB filled. no POST.

I have reached out to Asus as well, but I still hope that GSKILL TECH will take the time and give me some good advice.
